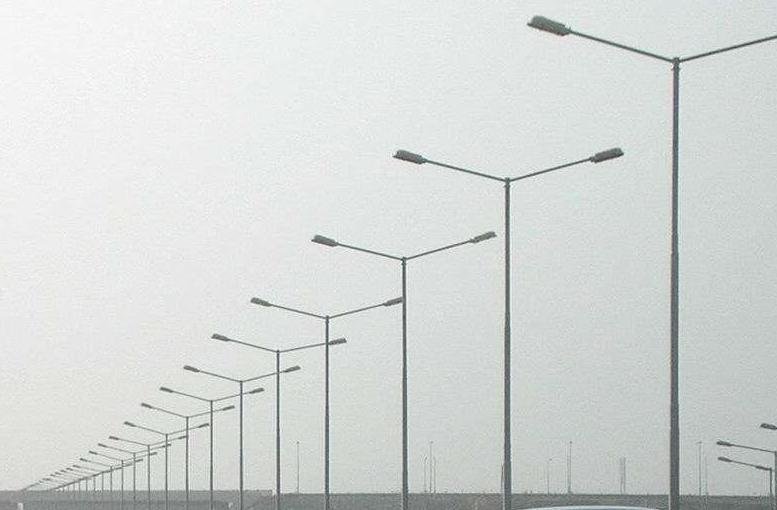

FRP Lighting Poles – Corrosion-Resistant & Lightweight Composite Poles for Modern Infrastructure

At RESPL (Radiant Energy Services Limited), we offer precision-engineered FRP (Fiber Reinforced Polymer) Lighting Poles designed to meet modern infrastructure needs with long-lasting durability, minimal maintenance, and aesthetic versatility. These non-metallic poles are ideal replacements for conventional steel or concrete poles in corrosive, coastal, or chemically exposed environments.
Manufactured using filament winding (for conical types) and pultrusion (for cylindrical types), our FRP poles are exceptionally lightweight, weather-resistant, and easy to install—drastically reducing installation time, labor costs, and structural load.
RESPL's FRP poles come in custom lengths, diameters, and colors, and are compliant with global design standards, ensuring high performance, safety, and structural reliability. Engineered with high-grade polyester resin and fiberglass reinforcements, these poles exhibit excellent bending strength, thermal insulation, and eco-friendly lifecycle benefits.

Salient Features

  • High corrosion and weather resistance
  • Lightweight structure – ease of transportation and installation
  • Lower installation and maintenance costs
  • Maintenance-free and environmentally sustainable
  • High bending strength and mechanical stability
  • Aesthetic design – available in custom colors
  • Compatible with large view glasses and insulated doors
  • Durable for long-term outdoor use

Product Variants

1. Conical Type Pole

Manufacturing Process: Filament Winding

  • Length: 4 meters to 13 meters
  • Base OD: 143 mm to 315 mm
  • Top OD: 105 mm

2. Cylindrical Type Pole

Manufacturing Process: Pultrusion

  • Length: Up to 4 meters
  • Outer Diameter: 75 mm and 100 mm

Pole Accessories

  • Internal or external junction boxes
  • Brackets: Single-arm or double-arm (1000mm / 1500mm / 2000mm)
  • Available with base plates or as burial type poles

Design & Quality Standards

  • ANSI C 136.20 – 1990
  • BS EN 40 - 7:200
  • AASHTO LTS-2 – 1985
  • IS 875 Part 3 – 1987

Material of Construction

  • High-strength Polyester Grade Resin reinforced with Fiberglass
